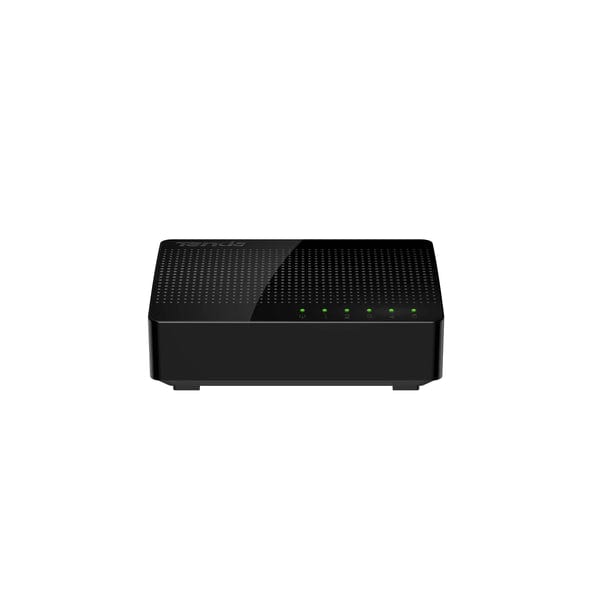

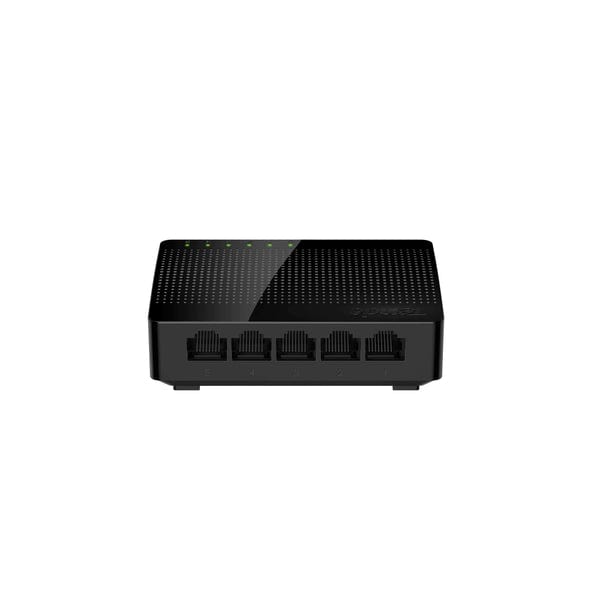

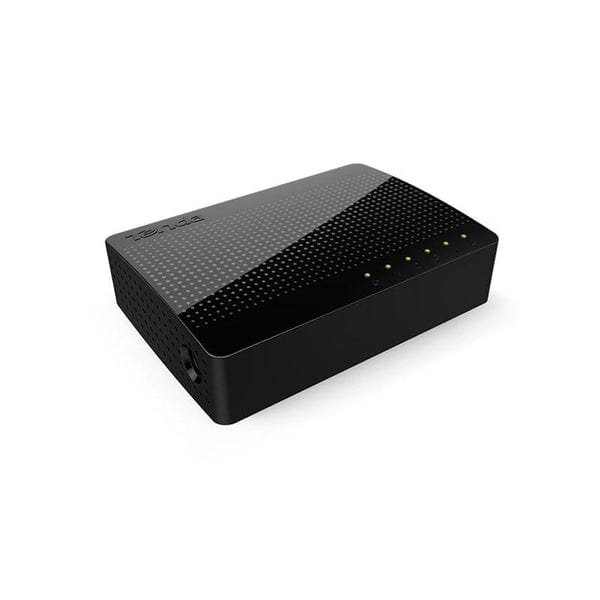

SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
Specification
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
LED Indicator
1* Power, 5* Link/Act
Interfaces
5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
93.0mm×66.0mm×23.0mm
Material
Plastic
Level of protection
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV
Forwarding mode
Store-and-forward
Switch capacity
10Gbps
Packet forwarding rate
7.44Mpps
Buffer
1Mb
MAC address table
2K
Jombo frame
N/A
Power
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )
Power consumption
Max:<1.7W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Warranty : 1 Year
