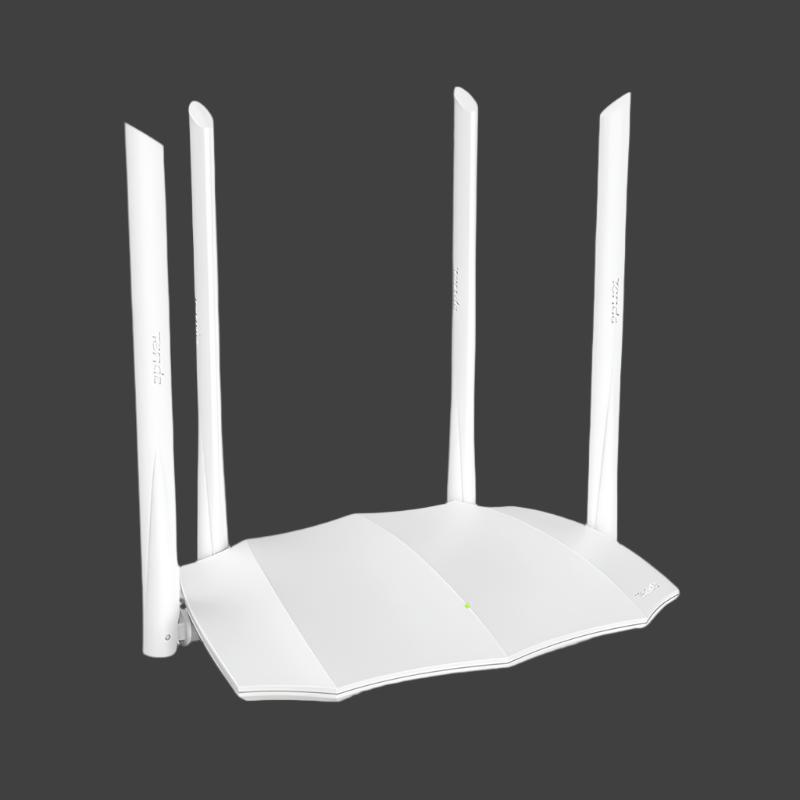

AC5 is an AC1200 dual-band WiFi router, designed for a medium-sized apartment or small home with 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high-performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.
Standard & Protocol:
IEEE802.3?IEEE802.3u?IEEE802.3ab

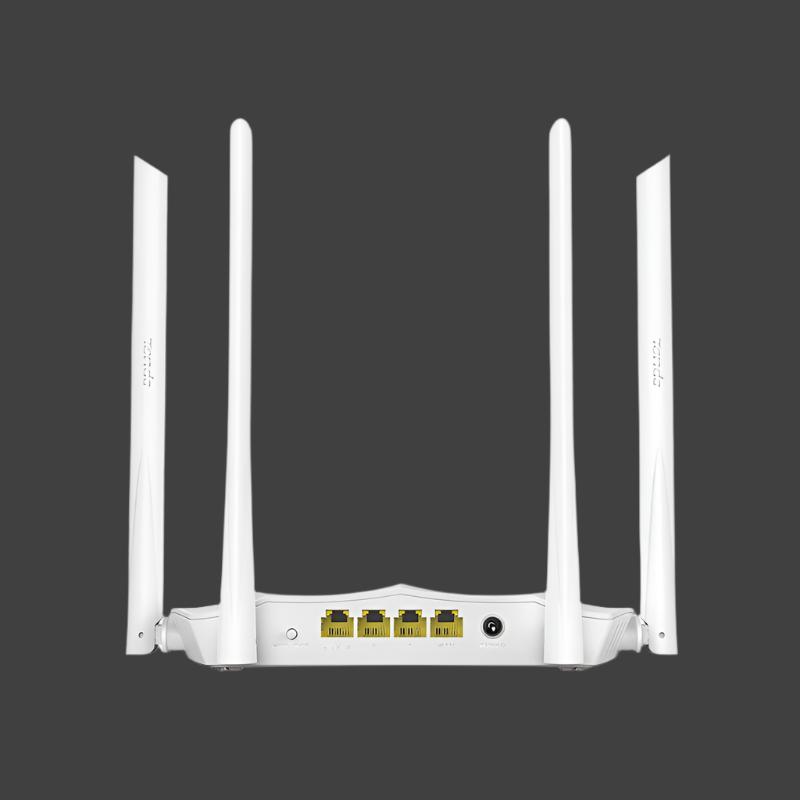

Interface:
110/100Mbps WAN port
310/100Mbps LAN ports
Antenna:
46dBi external high-gain antennas
Button:
1WPS/Reset button
Power:
Input: AC 100-240V—50/60Hz
Output: DC 9V 1A
LED indicator:
1 X LED
Dimension:
200x127x33.6mm(L X W X H)
Wireless Standards:
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
Data Rate:
2.4GHz: 300Mbps
5GHz: 867Mbps
Frequency:
2.400 – 2.4835 GHz
5.150 – 5.250 GHz
Wireless Security:
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable /Disable
Internet Connection Type:
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer
Operating Mode:
Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode
DHCP:
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server:
Port Forwaring
DMZ Host
UPnP
Security:
Client Filter supports black list and white list
Parental Control?supports black list and white list
Remote Web Management
Firewall:
Forbid WAN PING from internet
DDNS:
Support DynDNS, 88ip
Other features:
Support IPv6
Broadband management
MAC address clone
Static Routing
System Log
Backup & Restore Configurations
What's in the box:
- 1 X Wireless Router
- 1 X Ethernet Cable
- 1 X Power Adapter
- 1 X Installation Guide
