- WiFi antenna: receiving wireless signal.
- Human body induction: When the human body moves in front of the device. it can generate a trigger signal to the mobile phone.
- Lens: Capture image video.
- Indicator light: Working status: When the indicator is off during standby, the red light will be on when there is activity sign in front of the lens. and then turn to blue light.
- Light sensor: Used to collect the ambient brightness value. When the illumination is lower than 2 Lux, the infrared light is enable.
- Reset button: The working status of the device, press and hold fro 5 seconds to restore the factory settings.
- AP/WiFi button: AP mode available without WiFi network status
- TF card slot: Support up to 32GB TF card
- Speaker: Issue a system tone and implement voice intercom
- Battery compartment: Install the 18650 size battery to avoid power
- USB interface: Charge the device battery through the USB interface
- Solar panels: Charge the device battery
Specification :
- Resolution: 1920*1080
- Lens: 166 degree
- IR night vision: 850nm, the effective illumination distance is about 10m
- WiFi: Support 802.11b/g/n 2.4GHz
- Audio: Support talkback
- Record: Micro SD card( not include memory card)
- Memory: Support 8GB/16GB/32GB
- Battery: 2pcs 18650 batteries/Solar rechargeable battery (Not included)
- Charging: Solar charging
- Notification: within 2s
- Wake-up time: within 600ms
- Wake-up: Mode button / PIR wake-up/Mobile phone wake-up
- Power Consumption: 200uA
- Working current: 170mA
- WiFi distance: 10m
Package includes :

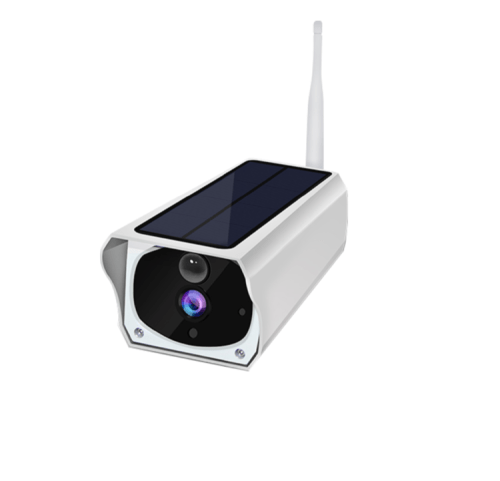

- 1 x Solar IP Camera
- 1 x User Manual
- 1 x Power Cable( not include memory card)
